MAQUINA CNC PARA MADERA - (codigo: 1870.000)
Precio de Oferta:  Consulte
Precio:  Consulte



seleccione una imagen para aumentar



  Pagina nueva 10

CROMADO DURO DEL PLATO

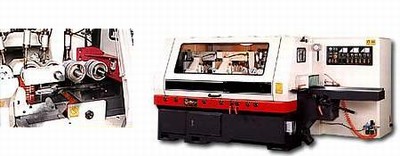

Maquina cnc para madera de alta producción. Aplana ,moldea, fresa.

  • GABINETE CERRADO
  • CABEZAL UNIVERSAL
  • AVANCE AUTOALIMENTADO
  • MULTIHUSILLO FLEXIBLE
  • 9000 RPM
  • CONTROL DIGITAL DE POSICIÓN



  • Hard chrome plated table for maximum wear resistance.
  • Fully splash guard at back of machine reduces noise and completely prevents chips splashing.
  • FC -25 machine base provides superior stability.
  • Anti-impact plate for over-width and over-thickness protection.
  • Oversized top and bottom rollers run sychronized, ensuring-smooth feeding.
  • FRP plastic steel splashfuard features maximum durability and-impact resistance.
  • Exclusively designed template inserted plate suits various stock-thickness and profile variations.
  • Univerrsal head
  • High speed feeding modle, over 40 m/min
  • Auto feeding magazine
  •  Special flexible & multiple spindle arrangement
  • High speed spindle over 9000 R.P.M.
  • Digital position contral



MODELO NO.  CM-747 CM-757 CM-767 CM-777 CM-787
CEPILLADO DE ALTURA Maxinum (Minimum)planing width  205 mm / 8" - ---( 25 mm -/ --1"
CEPILLADO DE ESPESOR Maximum (Minimum)planing thickness 125 mm / 5" ------( 8mm / 5/16" )
Minimum planing length 240mm
1st, 2nd sindel horesepower 7.5 HP
3nd, 4rd, 5th, 6th spindle horsepower 10 HP
Feed speed (Infintely variable)  5 HP
Elevation 1 HP
Spindle diameter 40 - 50mm
Crtterhead speeds 6200 ~ 7200 RPM
Feed speeds 5 ~ 20 - M/MIN ( over 20M available upon request )
Cutterhead diameter (First spindle) 100 ~ 125mm ( 2rd, 3th, 4th, 5th) 110 ~ 180mm
Tail cutter diameter 100~180mm 110~180mm 110~250mm 110~250mm 110~250mm
Maximum diameter for tail cutter sawblade - 7" 10" 10" 10"
Maximum sawblade dia. for 6th spindle - - 10" 10" 10"
Dust outlet diameter 5" 5" 5" 5" 5"
Net weight 2850 kgs 3100 kgs 4250 kgs 4800 kgs 5400 kgs
Gross weight 3500 kgs 3700 kgs 4850 kgs 5500 kgs 6200 kgs
Packing dimensions ( L x W x H ) 232x 186x 183cm 232x 186x 183cm 370x 186x 183cm 455x 186x 183cm 483x 186x 183cm





  Empresa: Gauchito SRL.
  Estado: Nueva



www.gauchito.com.ar - folleto y precio sugerido - puede haber cambios sin previo aviso - precio sujeto a final confirmacion
